ULTIMATELY VERSATILE.
UNIVERSAL GENIUS MEETS EFFICIENCY.
The MERAK 2800 DT with diesel-hydraulic drive combines strong performance with maximum
operational flexibility. As an extension of the electric concept, it operates efficiently and
independently of an external power supply – ideal for mobile applications.

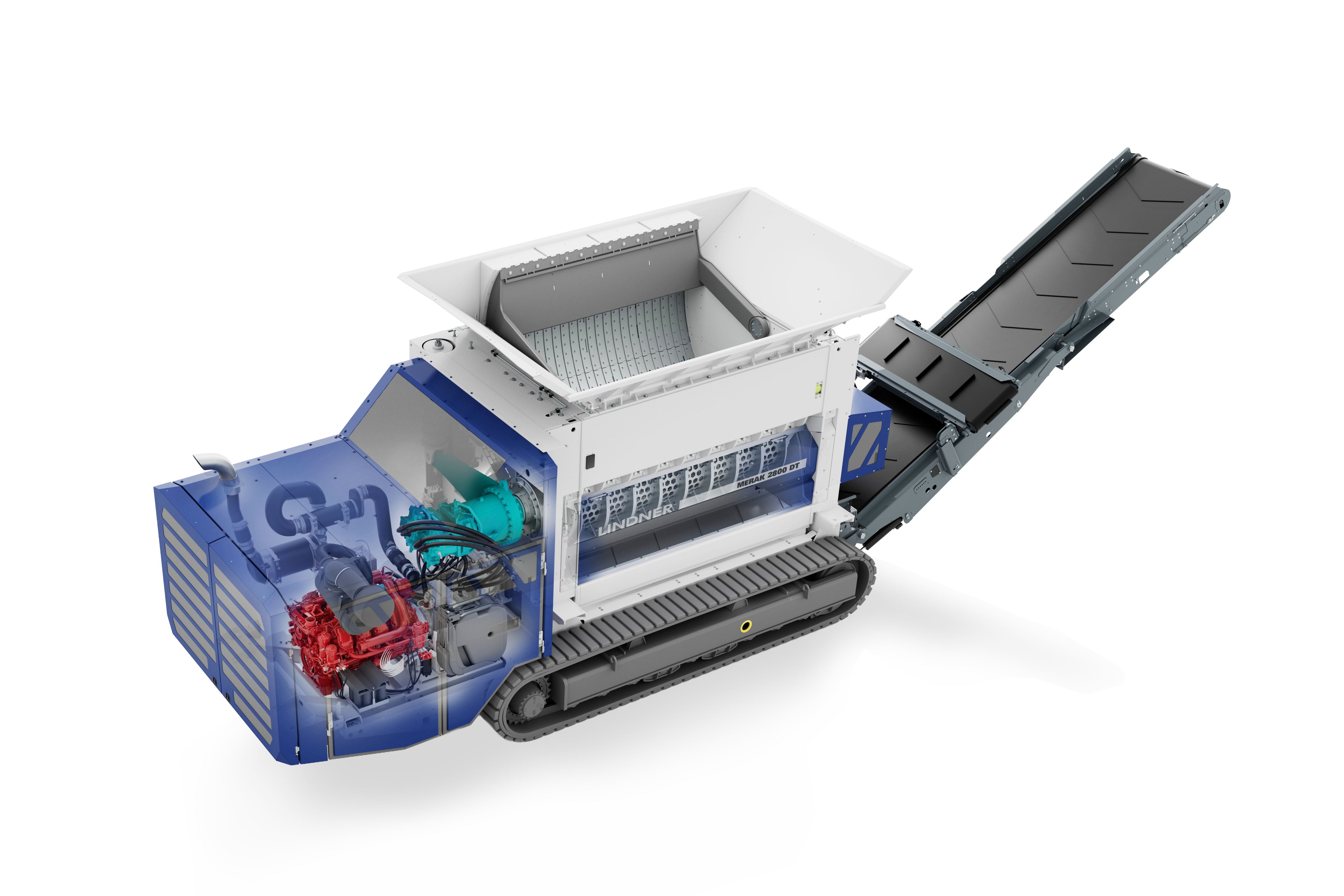

The powerful diesel engine and the coordinated hydraulic system ensure reliable power transmission
even under demanding conditions. Variable cutting and screening units enable flexible
adaptation to different materials, while maintaining consistently high processing quality and stable
performance.
Thanks to its innovative cutting system, the shredder can be used flexibly –
from coarse pre-shredding to precise universal and post-shredding applications.
The Merak consistently achieves particle sizes between 30 and 350 mm, covering a wide range of applications.
Connect With Us
Need answers about applications or particle sizes? Reach out today - our specialists are ready to provide support. Together, we'll uncover your perfect solution.
Input & Output Materials
Lindner Advantages
Key Features
- Mobile, powerful and compact single-shaft shredder with wet-running safety clutch
- Drive concept with a diesel-hydraulic system and speeds of up to 110 rpm.
- Three different cutting units for maximum flexibility
- Single-stage shredding with variable output sizes and a wide range of input materials.
- Homogeneous, defined output sizes from 30 to 350 mm
- High ease of maintenance and servicing
ALWAYS THE RIGHT CHOICE.
Whether primary, universal or secondary shredding - the Lindner modular system with its different drive and cutting units combines a wide range of applications with an unrivalled variety of materials - always at the optimum operating point. Equipped with a torque-controlled safety clutch, downtimes are minimised, protecting both the cutting unit and drive components. The optionally available automatic belt tensioning system (ATB) also makes sure that the power is optimally transmitted at all times.
MERAK PRIMARY SHREDDING
The Merak primary shredding cutting system is specially designed for volume reduction and high throughputs and prepares materials optimally for downstream processes.
Paticel size: 250 - 350 mm
MERAK UNIVERSAL SHREDDING
The Merak universal cutting system was developed for primary shredding as well as for one-step processing of a wide variety of material streams to a defined output size. The closely arranged rows of knives in combination with adjustable speeds ensure high throughput, efficiency and capacity to shred diverse materials and allow for different applications, in each case depending on the requirements and screen diameter. Both the knives and the knife holders are screwable, so that the individual components can be replaced quickly and easily if necessary.
Particel size: 80 - 300 mm
MERAK SECONDARY SHREDDING
The Merak secondary shredding cutting system is specially designed for small output sizes from 30 to 120 mm. Depending on the application and screen size, this cutting unit is ideal for the secondary shredding of waste wood or the processing of industrial and commercial waste into medium-calorific substitute fuel and to fuel calciners.
Particle size: 30 - 120 mm
