Really Packs a Punch.

Belt Drive With Planetary Gears

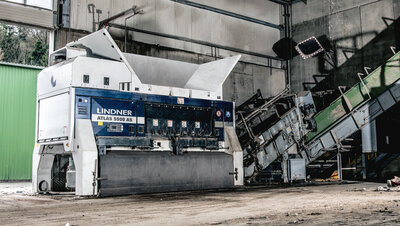

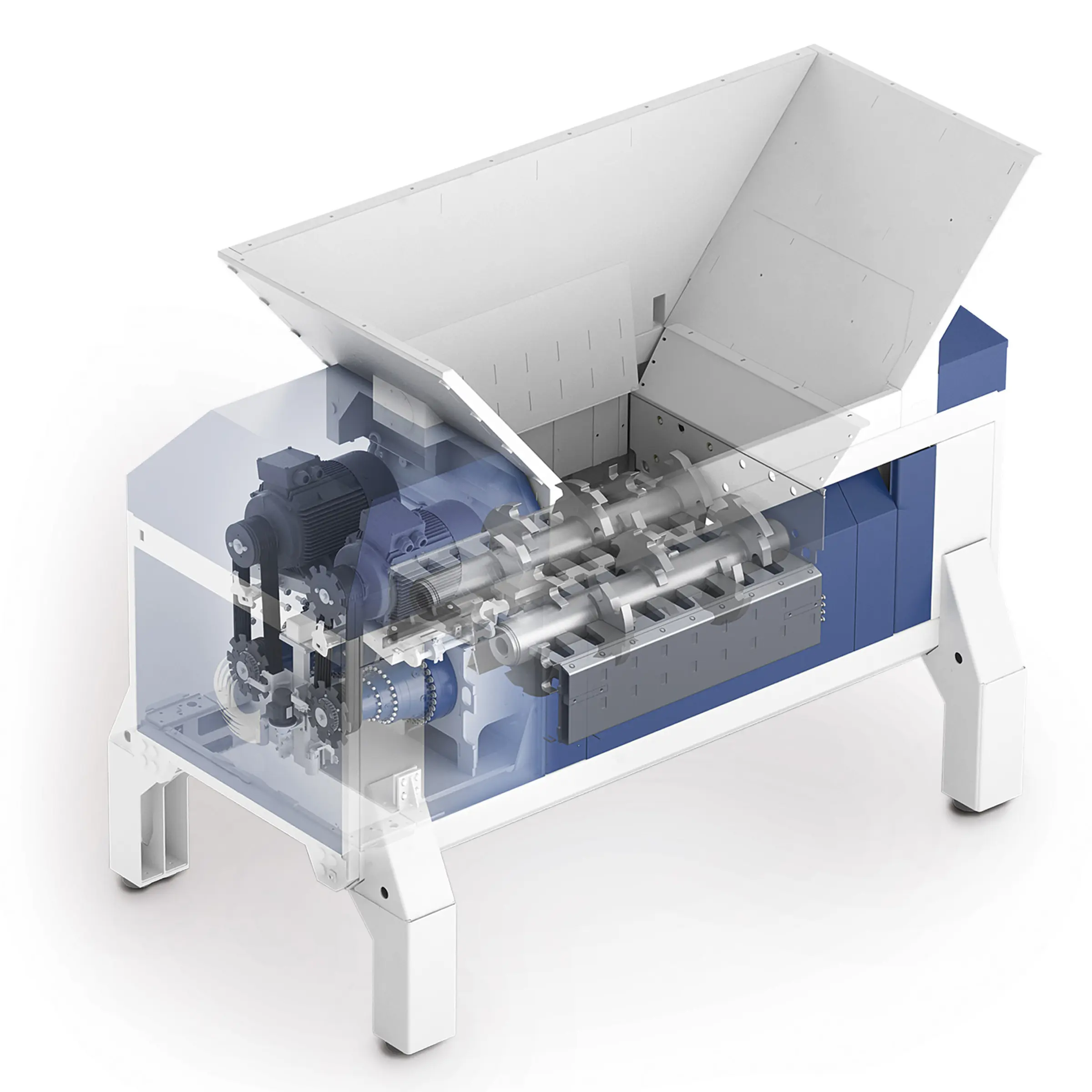

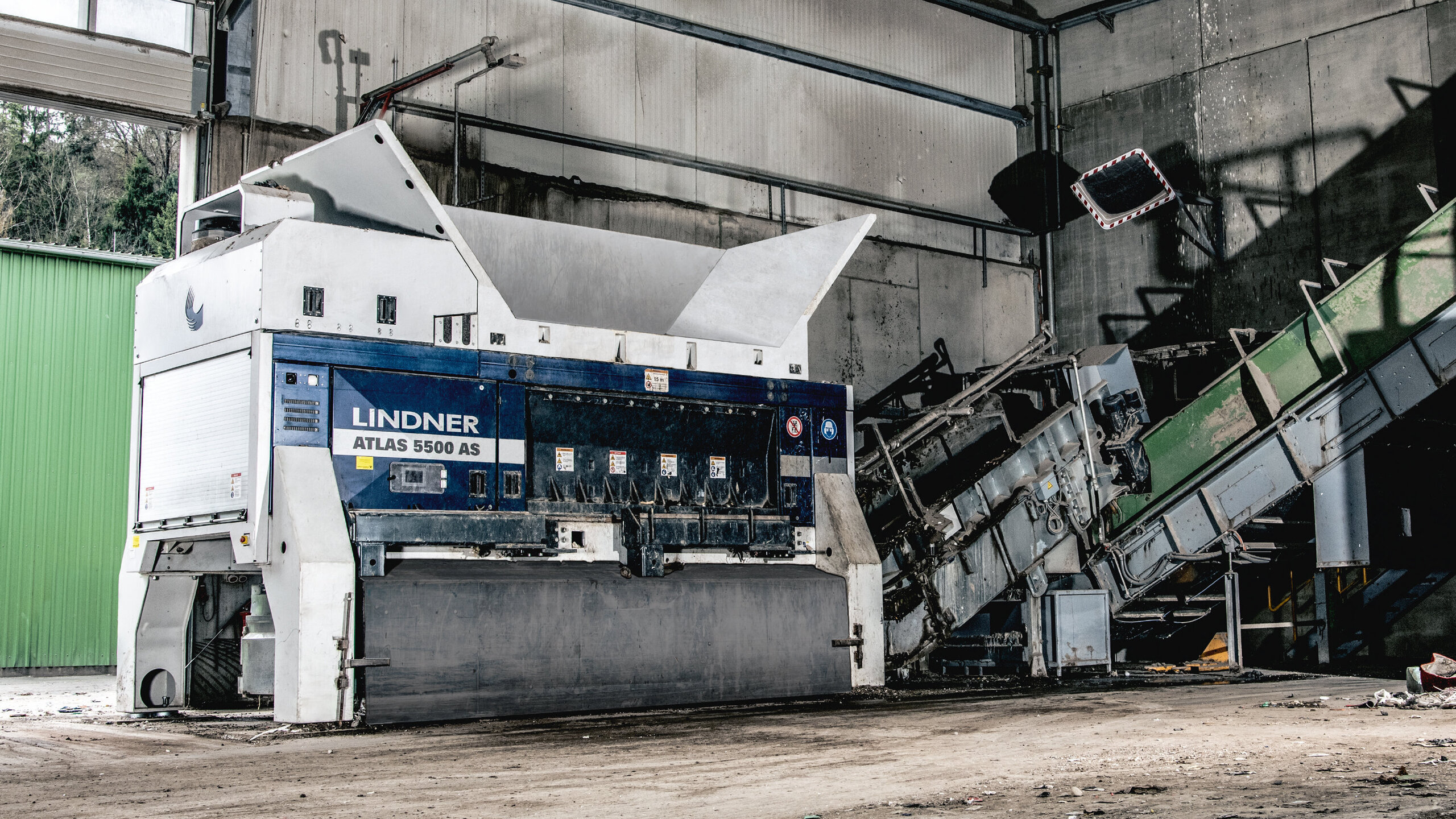

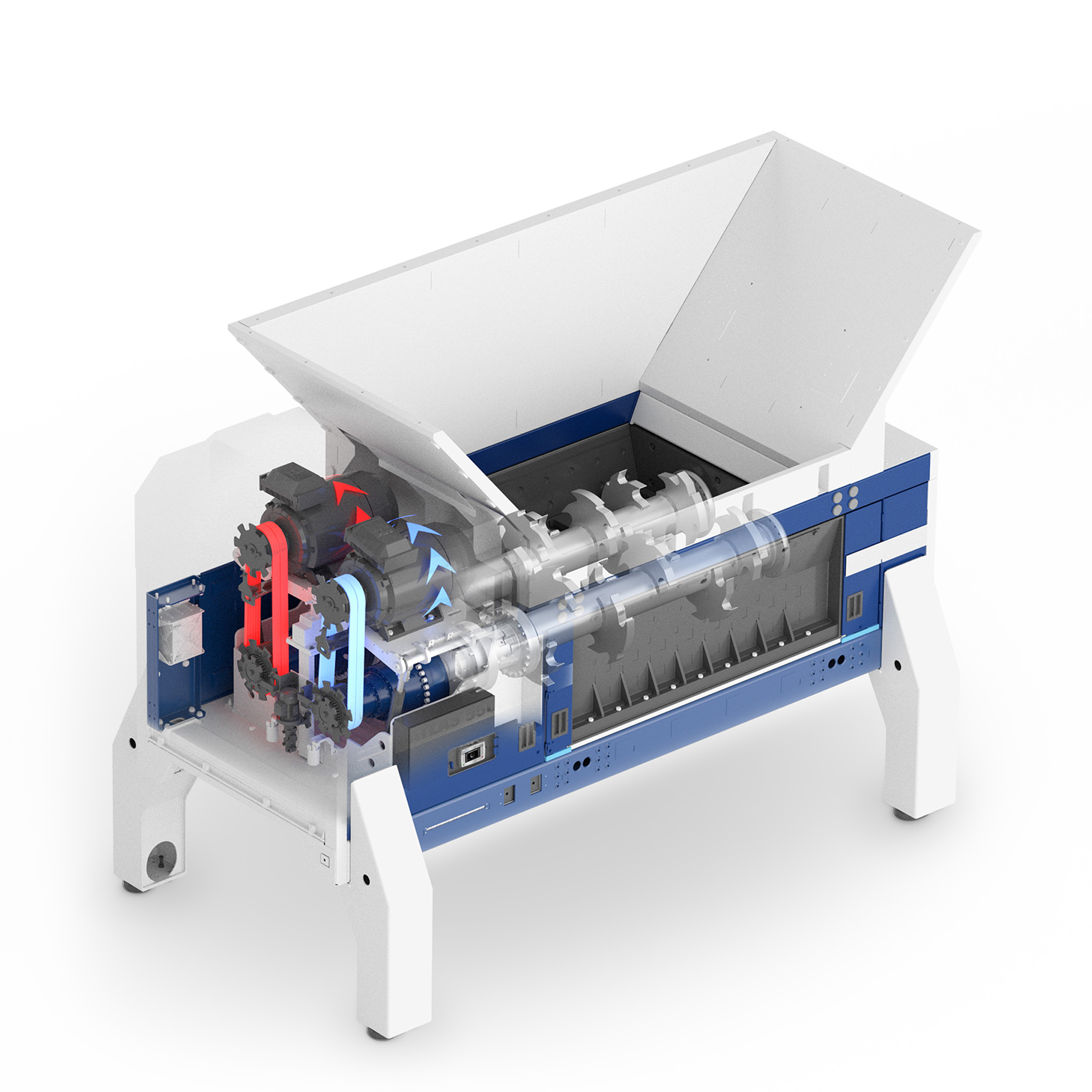

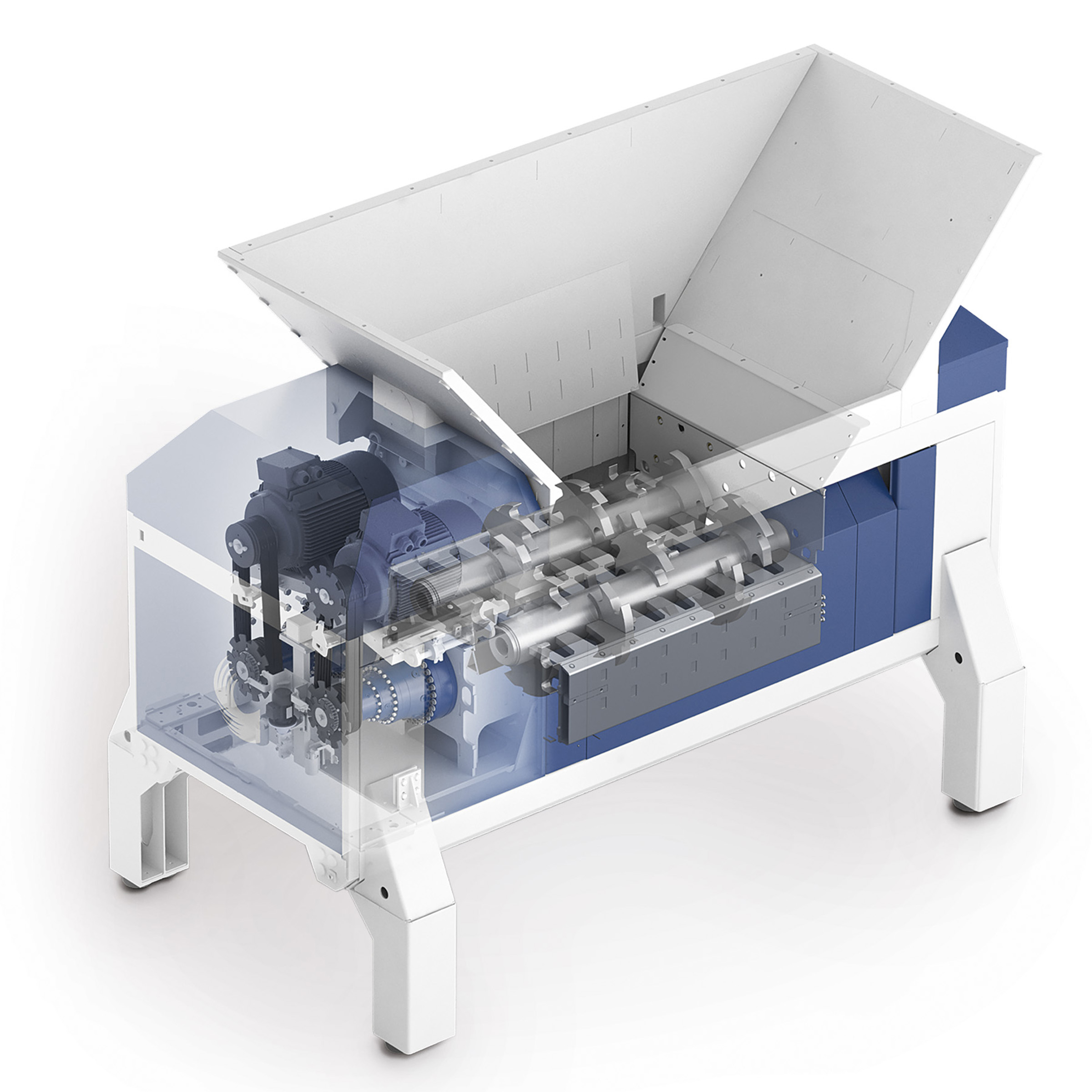

Based on the proven belt concept, Lindner’s Atlas 5500 AS twin-shaft primary shredder sets new efficiency standards with its high-performance planetary gears, innovative DEX (Dynamic Energy Exchange) energy recovery system, and asynchronous shaft control.

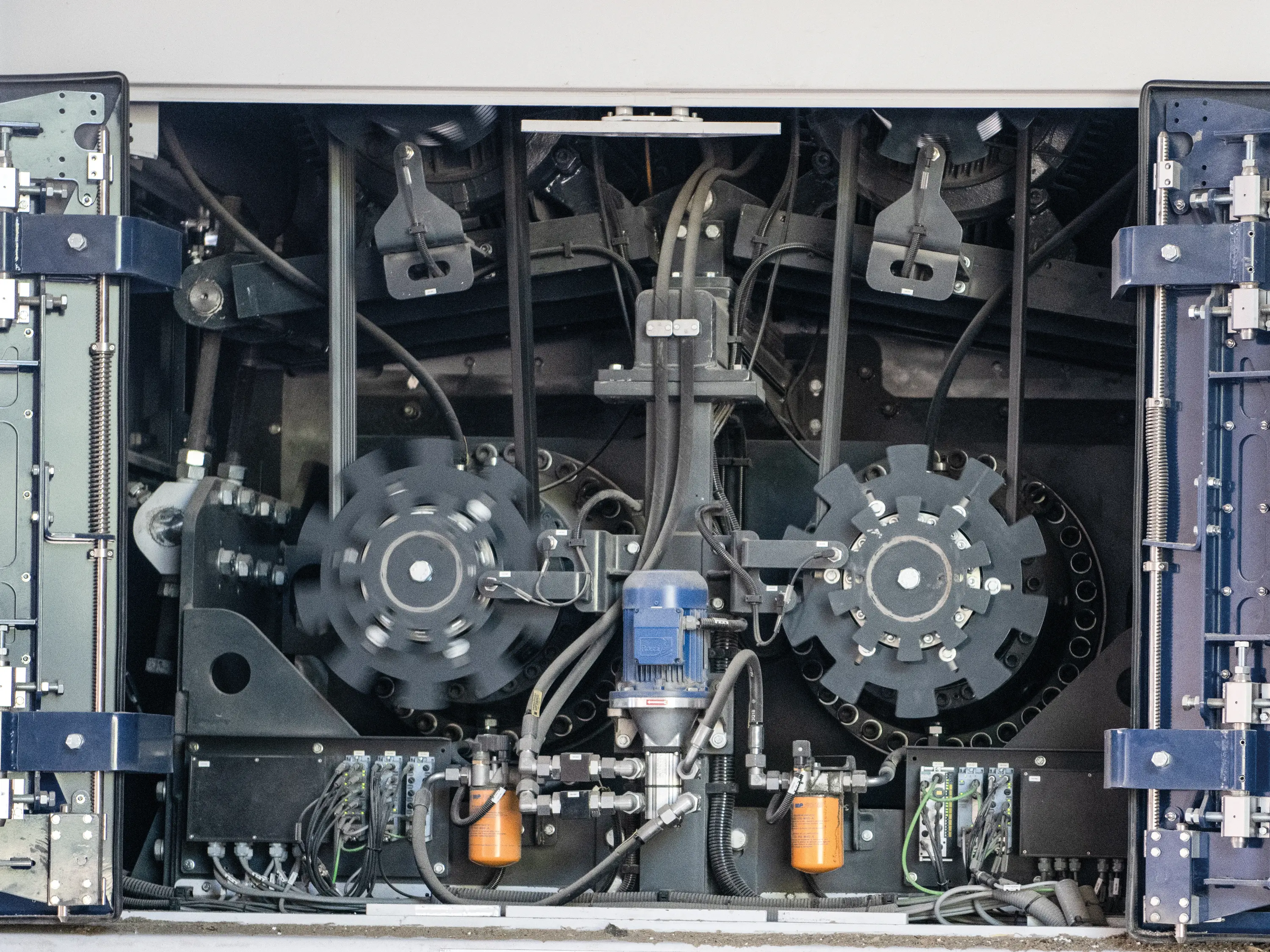

Lindner's ATB – Automatic belt tensioning system:

• Ensures optimum power transmission at all times
• Belt exchange using a hydraulic tensioning device
• Self and preventive monitoring

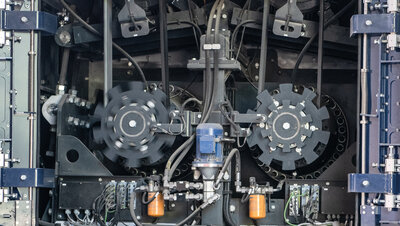

Compressed air ventilation drive unit:

• Protects the drive unit from dirt
• Significantly reduced maintenance activities
• With radial fan and self-cleaning function

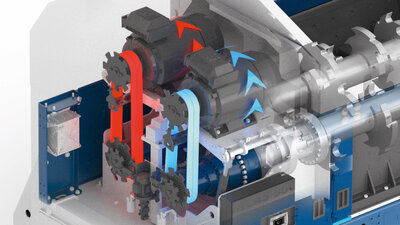

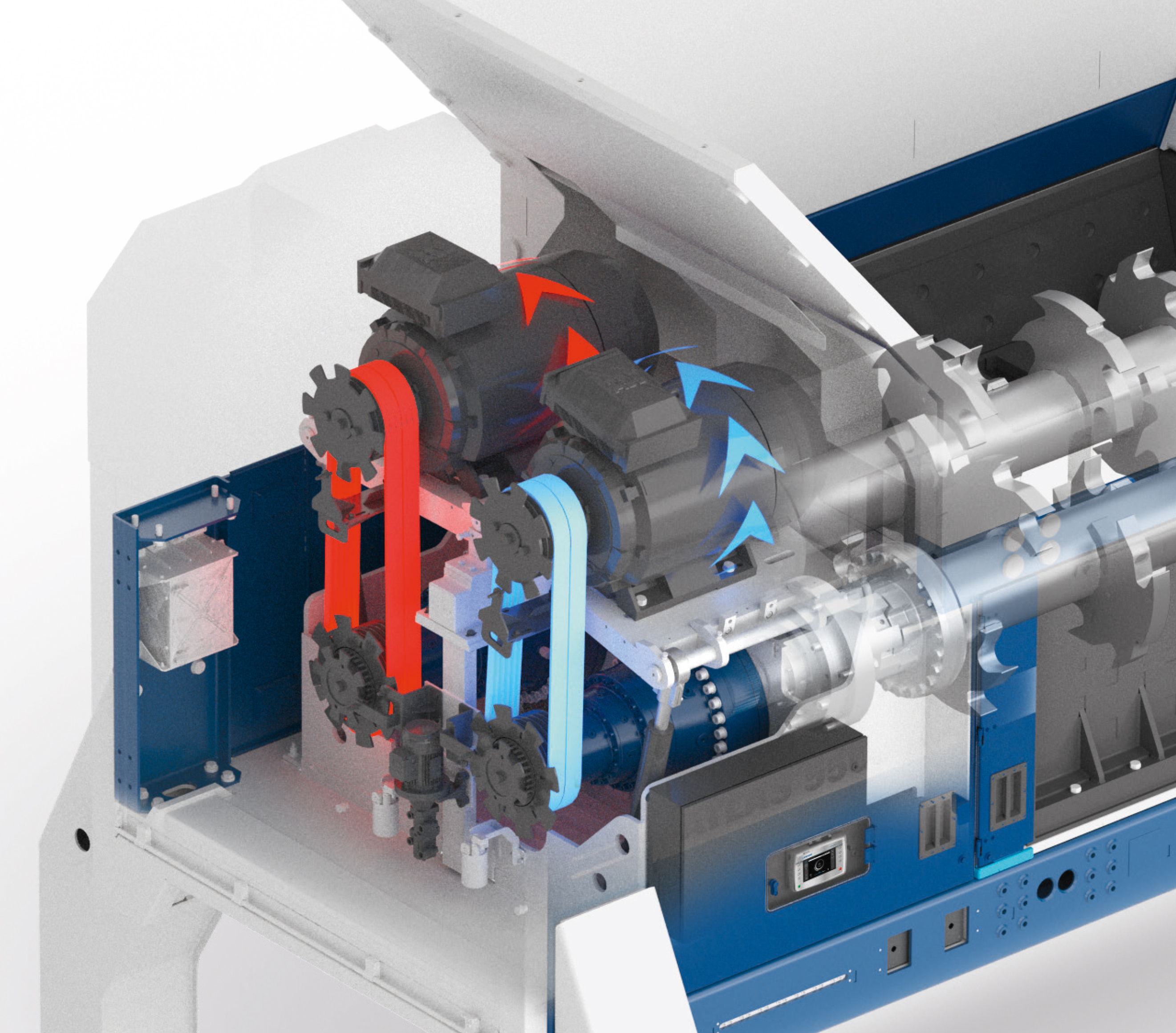

DEX - Smart Energy Management System

Lindner's dex – our dynamic energy Exchange system – for maximum efficiency

maximum efficiency is achieved by actively using braking energy when reversing one of the shafts. top productivity is ensured with an instant, power electronics-controlled reversal of the shaft running direction.

• Innovative, load-dependent energy management
• Highest energy Efficiency in operation
• Maximum agility while changing the running direction, up to 3 times faster

Mechanical Safety Clutch

torque-limiting safety clutch

• optimum drive protection thanks to the drive unit's instant mechanical disengagement
• secure power down with our tried-and-tested sensors
• flexible adjustability to the input material

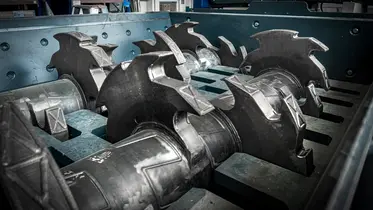

Twin-Shaft Cutting System

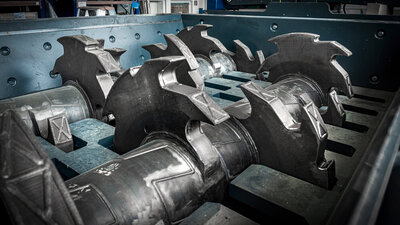

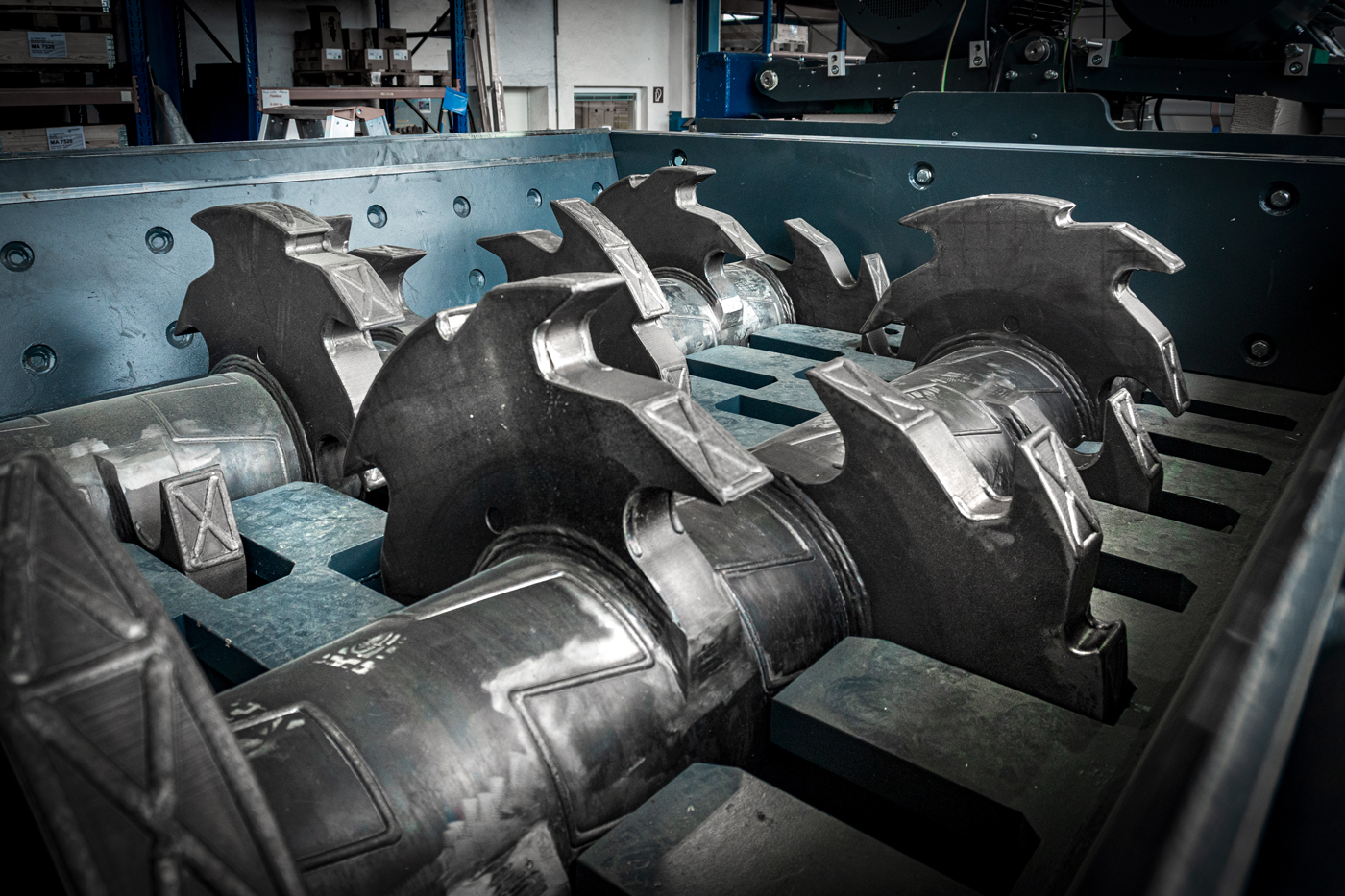

The cutting system of the Atlas AS consists of two asynchronously running, fully welded rotors and a solid scraper unit. The asynchronous ripping (ripping apart, ripping up) at low speeds with high torque combined with the dynamic energy recovery enables:

• Aggressive material intake
• Continuous volume flow
• Highest productivity
• Ideal output material for sorting

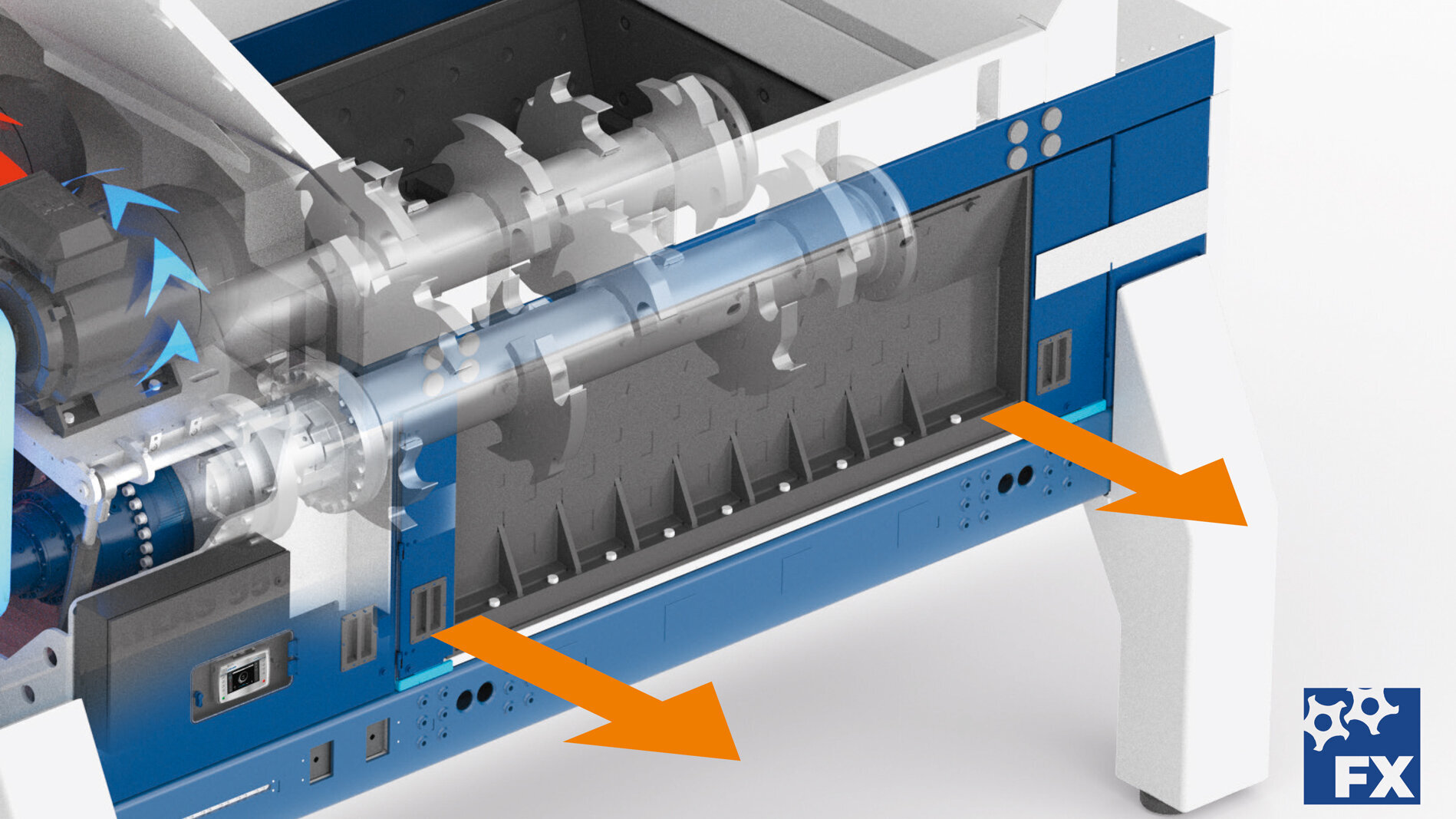

FX - Fast Exchange System

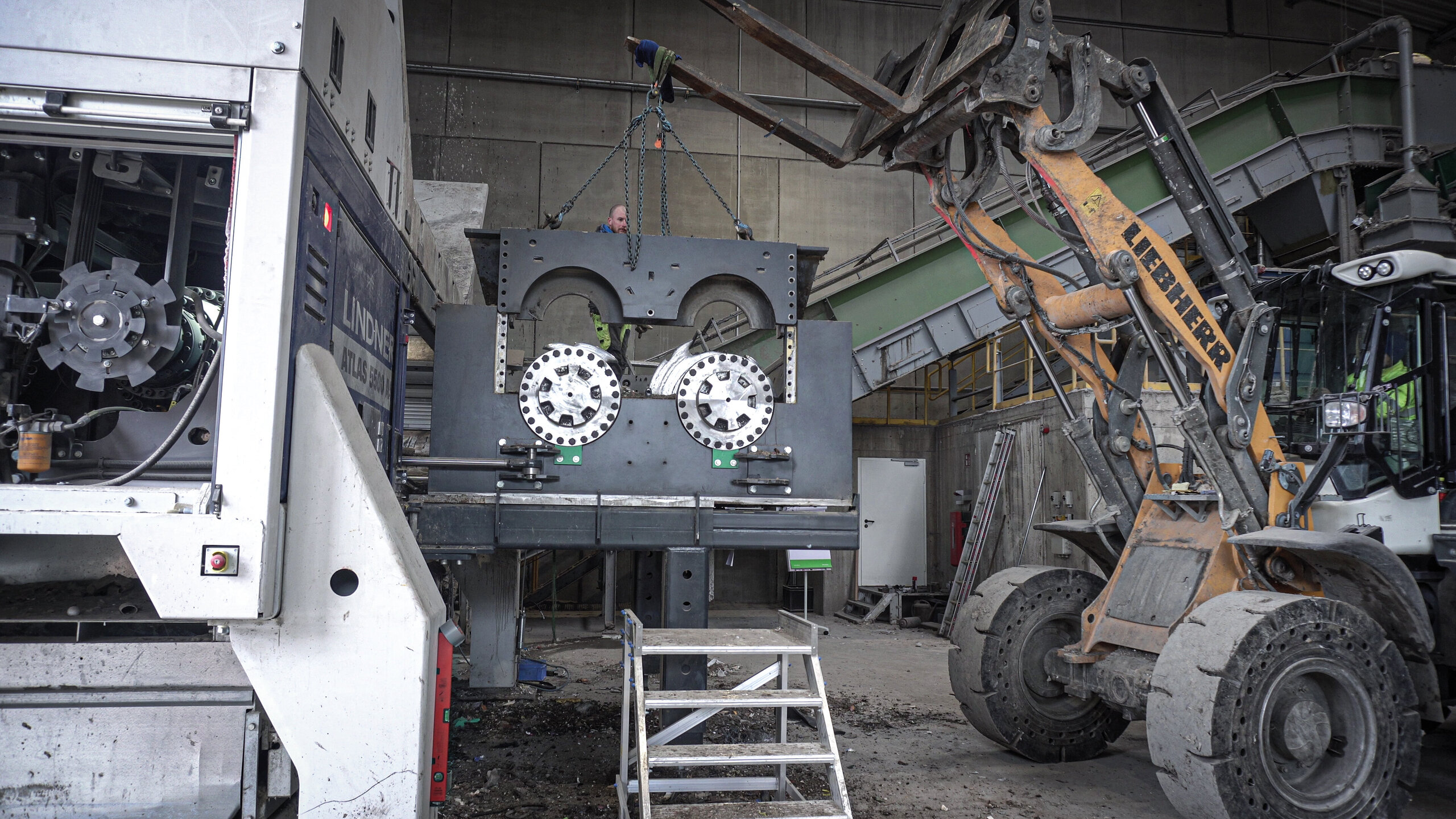

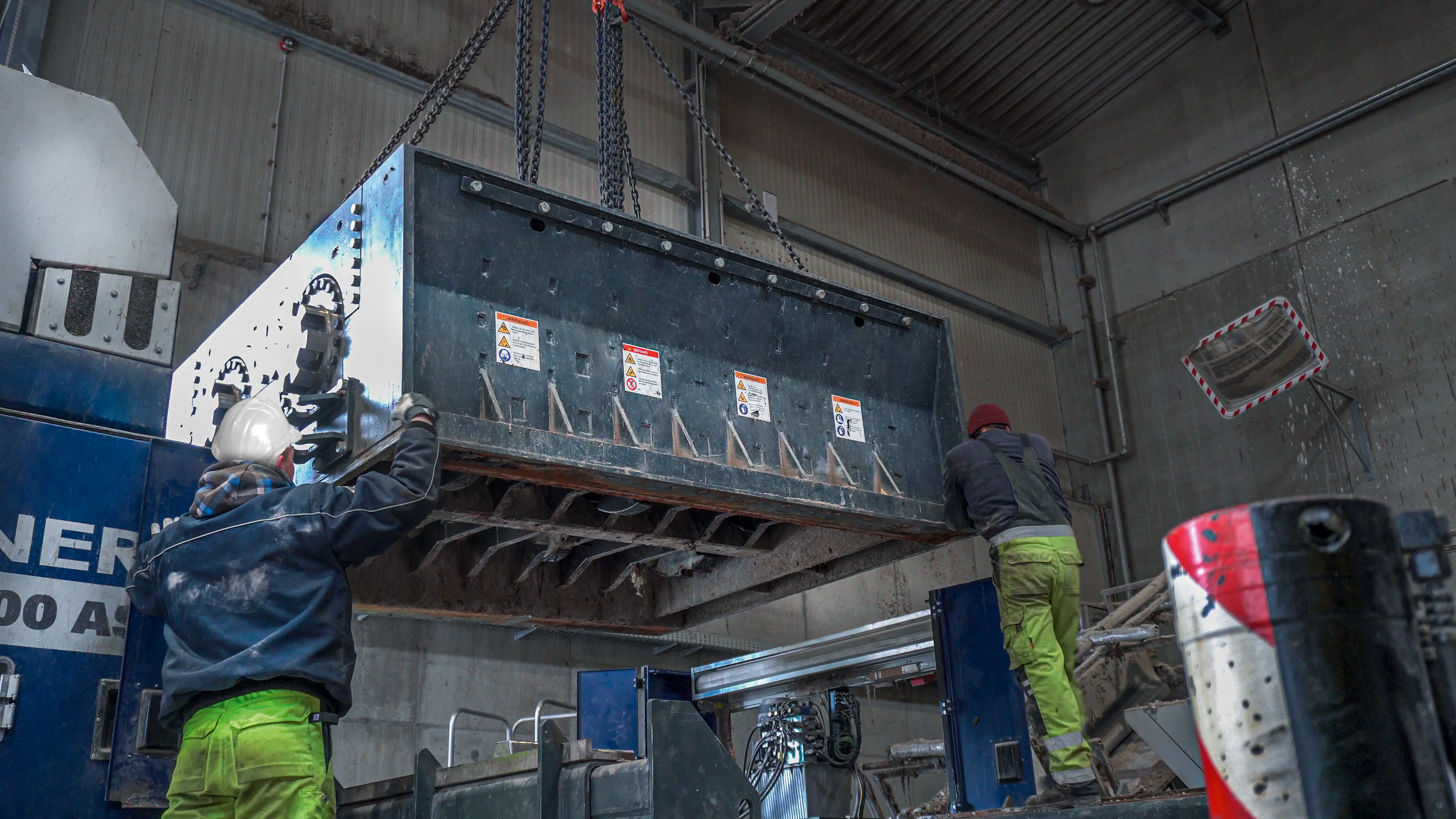

The Atlas series has been perfected to give you easy access to the cutting unit and provides two options for removing or changing the entire cutting unit or individual components. The components can be removed from the side via the hydraulically operated, swivelling slider or, after removal of the hopper, from the top.

• The cutting unit can be exchanged quickly, ensuring minimum downtime
• The two quick-change options guarantee maximum flexibility
• Easy and fast removal of the hopper

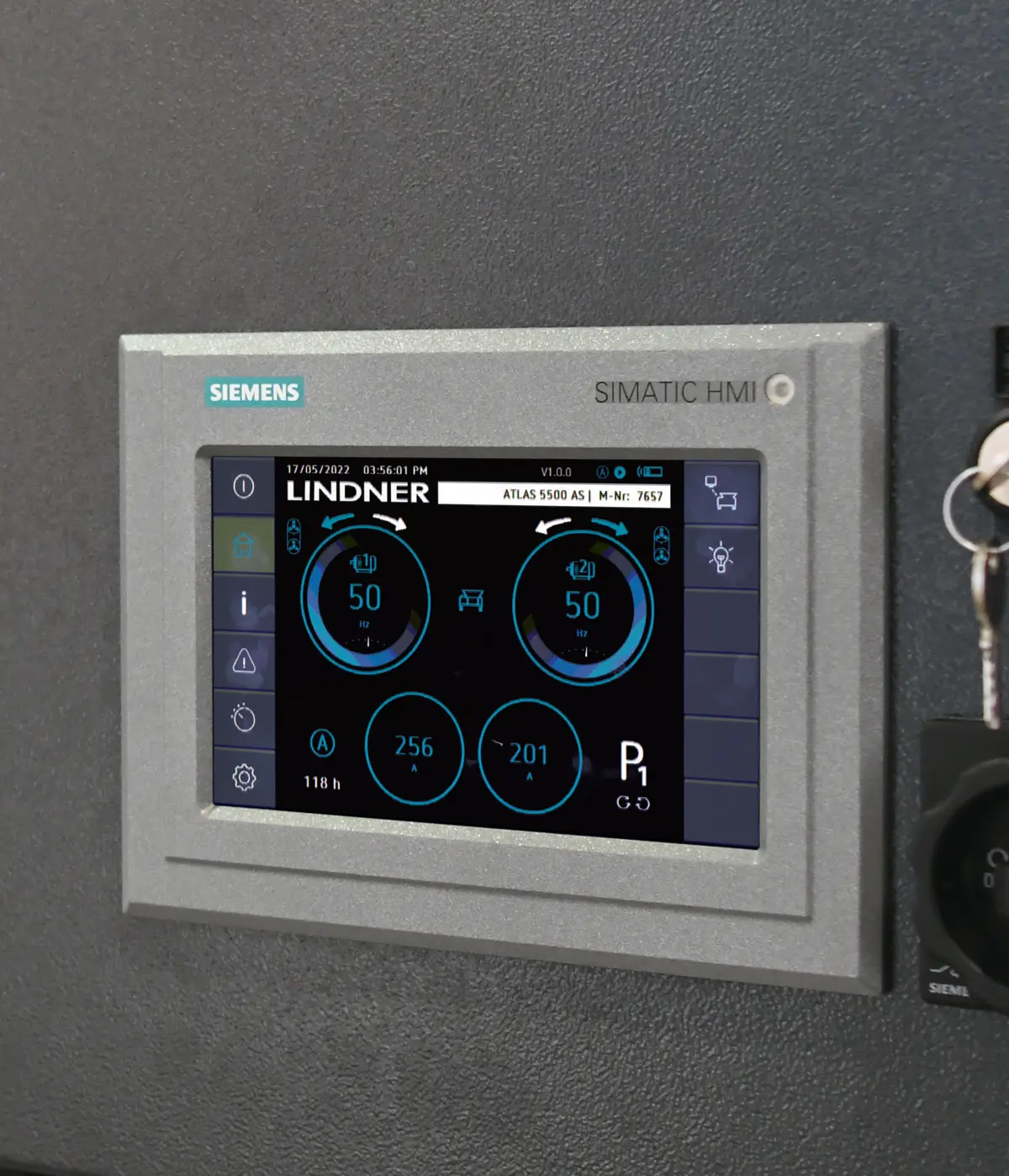

Controlling & Operation

• intuitive menu navigation due to software functions automatically opening and closing depending on the task at hand
• high availability thanks to fast troubleshooting with smart solution-finding and integrated FAQ database
